C-KQ2LU12-02S,外螺偏三通接头,快换接头 - C-KQ系列(普通型)

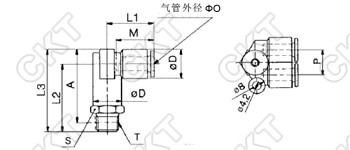

产品简介:
ΦO |
型 号 |
S |
T |
L1 |
L2 |
L3 |
ΦD |
P |
A |
M |
Φ4 |
C-KQ2LU04-M5 |
11 |
M5×0.8 |
18.6 |
24.1 |
29.6 |
10.4 |
10.4 |
25.5 |
16.1 |
C-KQ2LU04-M6 |
M6×1.0 |
24.6 |
30.2 | |||||||
C-KQ2LU04-01S |
R1/8 |
26.6 |
32.1 |
27.6 | ||||||
C-KQ2LU04-02S |
14 |
R1/4 |
30.6 |
36.2 |
30.1 | |||||
Φ6 |
C-KQ2LU06-M5 |
12 |
M5×0.8 |
21.1 |
26.6 |
33.1 |
12.8 |
12.8 |
29.5 |
17.1 |
C-KQ2LU06-M6 |
M6×1.0 |
27.1 |
33.6 | |||||||
C-KQ2LU06-01S |
R1/8 |
29.6 |
36.2 |
32.1 | ||||||
C-KQ2LU06-02S |
14 |
R1/4 |
33.1 |
39.6 |
33.6 | |||||
C-KQ2LU06-03S |
17 |
R3/8 |
35.1 |
41.6 |
35.1 | |||||
Φ8 |
C-KQ2LU08-01S |
R1/8 |
24.1 |
34.1 |
15.2 |
15.2 |
38.1 |
18.6 | ||
C-KQ2LU08-02S |
R1/4 |
37.1 |
44.6 |
38.6 | ||||||
C-KQ2LU08-03S |
R3/8 |
38.1 |
45.6 |
39.1 | ||||||
Φ10 |
C-KQ2LU10-02S |
19 |
R1/4 |
27.1 |
40.1 |
49.6 |
18.5 |
18.5 |
43.6 |
21.1 |
C-KQ2LU10-03S |
R3/8 |
41.1 |
50.6 |
44.1 | ||||||
C-KQ2LU10-04S |
22 |
R1/2 |
44.6 |
54.3 |
45.6 | |||||
Φ12 |
C-KQ2LU12-02S |
R1/4 |
29.1 |
42.6 |
53.2 |
20.9 |
20.9 |
47.2 |
22.1 | |
C-KQ2LU12-03S |
R3/8 |
43.7 |
54.2 |
47.6 | ||||||
C-KQ2LU12-04S |
R1/2 |
46.4 |
57.1 |
49.2 |
